Solid Carbide Oil Spray Nozzle / Wet Blasting Nozzle Wear Resistance
Carbide Oil Spray Nozzle Introduction
A nozzle is a device designed to control the direction or characteristics of a flow (especially to increase velocity) as it exits (or enters) an enclosed chamber or pipe via an orifice.
For nozzles, tungsten carbide nozzle is the most rugged and durable and provides the best value.
Tungsten carbide nozzle is made by the precision machining with the tungsten carbide materials (super hard alloy). The hardness reached over HRA 90 degree while the anti bending degree reached over 2300N/mm.
Carbide Oil Spray Nozzle Advantage
- High stability, long lifespan circle.
- Customized as your requirements.
- Approved factory for oil and natural gas industry TOP10 customers.
- With ASP9100 certificate , API certificate, ISO9001:2015
- With a Special Thread Processing Workshop
Carbide Oil Spray Nozzle Features:
Aseeder Cemented tungsten carbide spary nozzle of oil field have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.

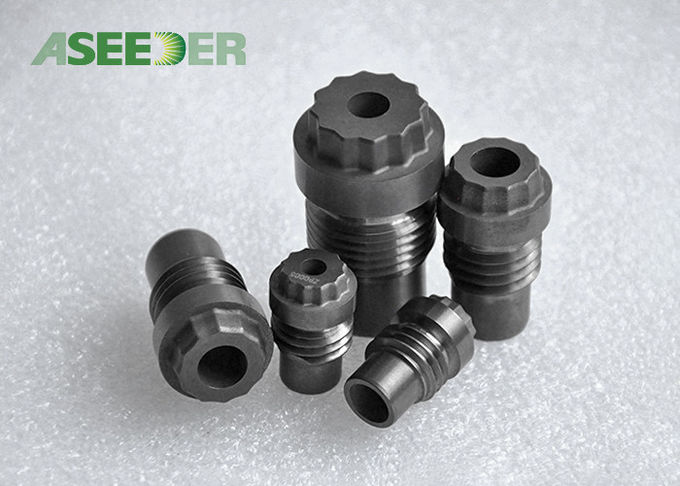

Aseeder Cemented tungsten carbide spary nozzle of oil field drill bit parts are availabe in these styles and sizes:
-
outer hexagonal thread nozzles
-
cross groove thread nozzles
-
Y type(three grooves) thread nozzles
-
gear wheel drill bitt nozzles and press fracturing nozzles.
Recommended tungsten carbide grade list
| Grade | Co
(Wt %) | Density
(g/cm3) | Hardness (HRA) | TRS
(≥N/mm²) |
| ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
| ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
| ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
| ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Package :
Each unit will be packed into a plastic cylinder with foam, then put on carton box.
Major Product Lines
· Wear resistant carbide components via powder metallurgy technique
· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)
· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)
· Additive manufacture
The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.
Representative Products
Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
